Gearbox test rigs are specialized systems designed to evaluate the performance, durability, and reliability of gearboxes used in various applications, such as automotive, industrial machinery, wind turbines, and aerospace. These rigs simulate real-world operating conditions to test gearboxes under controlled environments, ensuring they meet design specifications and industry standards.

Purpose and Applications

  • Performance Testing: Assesses the efficiency, power transmission, torque capacity, and thermal behavior of the gearbox.
  • Durability and Endurance Testing: Evaluate the gearbox’s lifespan by subjecting it to long-term operational conditions, including load cycling and extreme stress.
  • Noise and Vibration Testing: Analyzes the acoustic and vibrational characteristics to ensure the gearbox operates within acceptable noise levels and without excessive vibrations.
  • Lubrication Testing: Tests the effectiveness of lubrication systems within the gearbox to ensure proper functioning and minimize wear.
  • Efficiency Testing: Measures the gearbox’s ability to transmit power with minimal energy loss.
Categories: ,

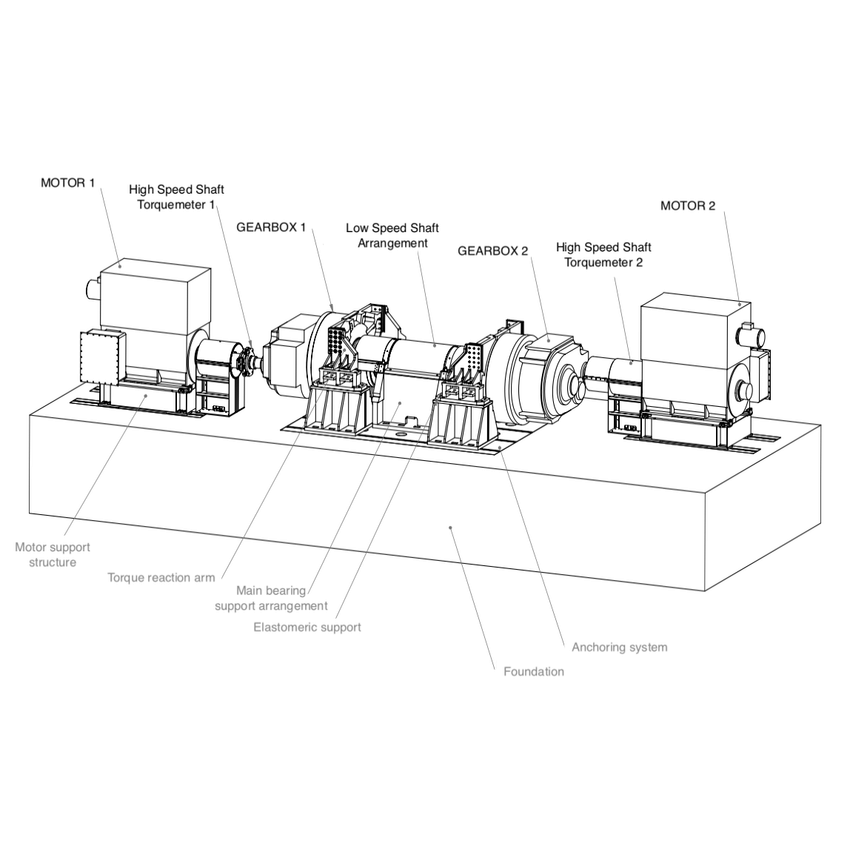

Components of Gearbox Test Rigs

  • Load Application System: Simulates the operational load on the gearbox, typically using electric motors or hydraulic systems to apply torque and rotational speed.
  • Control System: Manages and adjusts test conditions, such as load, speed, and temperature, according to the test requirements.
  • Data Acquisition System: Collects and records data on various parameters, including torque, temperature, vibration, noise, and rotational speed.
  • Cooling and Lubrication System: Manages the heat generated during testing and ensures adequate lubrication of moving parts.
  • Safety Features: Includes emergency stop systems, protective enclosures, and automated shutdown protocols to prevent accidents and equipment damage.

Types of Gearbox Test Rigs

  • End-of-Line Test Rigs: Used in manufacturing to perform final quality checks on gearboxes before they are shipped to customers.
  • Endurance Test Rigs: Designed for long-term testing to simulate years of operation in a short period, often used in research and development.
  • Noise and Vibration Test Rigs: Focused on analyzing the gearbox’s acoustic and vibrational behavior under different operating conditions.
  • Environmental Test Rigs: Subject the gearbox to varying environmental conditions, such as temperature fluctuations, humidity, and corrosive environments, to test its resilience.

Industries and Use Cases

  • Automotive Industry: Testing gearboxes used in cars, trucks, and other vehicles to ensure they meet performance and durability standards.
  • Wind Energy: Evaluating the gearboxes used in wind turbines, which are critical for converting wind energy into electrical power.
  • Aerospace: Testing gearboxes used in aircraft and spacecraft, where reliability and performance are critical.
  • Industrial Machinery: Ensuring the reliability of gearboxes used in heavy machinery, robotics, and manufacturing equipment.

Key Considerations

  • Precision and Accuracy: High precision is crucial for measuring torque, speed, and other critical parameters accurately.
  • Flexibility and Scalability: The ability to test different types and sizes of gearboxes under various conditions.
  • Safety: Rigorous safety protocols to protect both operators and the equipment during high-stress tests.
  • Data Integrity: Robust data acquisition and analysis systems to ensure accurate and reliable test results.

Gearbox test rigs are essential for ensuring that gearboxes operate reliably under their intended conditions, minimizing the risk of failure in critical applications and extending the service life of the gearbox.
