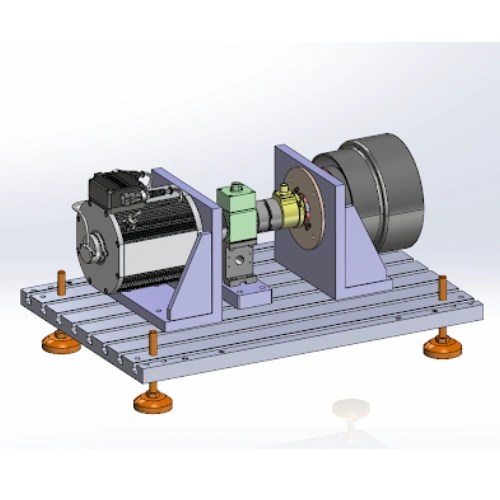

Motor test rigs are specialized equipment used to evaluate the performance, durability, and reliability of motors, whether electric, internal combustion or other types. These rigs are crucial for testing motors under various conditions to ensure they meet design specifications and industry standards. Here’s an overview of key aspects of motor test rigs:

Purpose and Applications

  • Performance Testing: Evaluates the motor’s efficiency, speed, torque, power output, and thermal characteristics.
  • Endurance Testing: Assesses the motor’s durability by simulating long-term operational conditions.
  • Noise and Vibration Testing: Analyzes acoustic and vibrational properties to ensure they are within acceptable limits.
  • Environmental Testing: Tests motor performance under different environmental conditions like temperature, humidity, and dust.
Categories: ,

Components of Motor Test Rigs

  • Load System: Applies mechanical load to the motor to simulate real-world operating conditions. Common types include dynamometers.
  • Control System: Manages test conditions, adjusting parameters like speed, torque, and load.
  • Data Acquisition System: Collects data on motor performance, such as current, voltage, speed, and temperature.
  • Cooling System: Manages heat dissipation during testing, which is critical for high-power motors.

Types of Motor Test Rigs

  • Dynamometer Test Rigs: Common for electric and combustion engines, these rigs measure torque and rotational speed, calculating power output.
  • Environmental Chambers: Allow for testing under controlled environmental conditions, such as temperature and humidity.
  • End-of-Line Test Rigs: Used in production lines for final quality checks, ensuring each motor meets specifications before shipping.

Industries and Use Cases

  • Automotive Industry: Testing electric and internal combustion engines for cars, trucks, and other vehicles.
  • Aerospace: Evaluating motors used in aircraft systems.
  • Manufacturing: Quality control in motor production facilities.
  • Renewable Energy: Testing motors used in wind turbines, hydroelectric generators, and other renewable energy systems.

Key Considerations

  • Accuracy and Precision: High accuracy in measuring performance parameters is essential.
  • Flexibility: The ability to test different types of motors and customize test conditions.
  • Safety Features: Safety mechanisms to protect operators and equipment during testing.

Motor test rigs are critical for developing new motor technologies, ensuring quality in mass production, and complying with regulatory standards.
